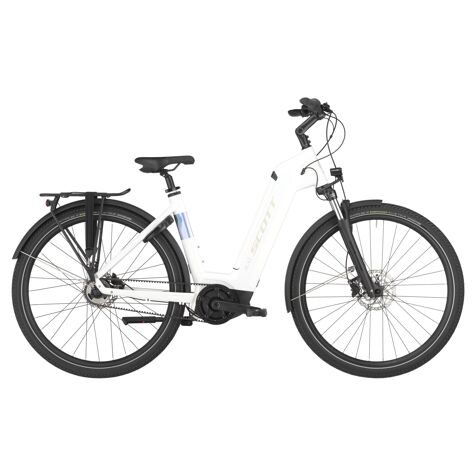

SCOTT SUB 40 BELT WAVE
SCOTT
Omschrijving
Alloy XS-L=29" / 6061 Alloy custom butted tubing
Top extraction battery
135mm QR with 52mm Chainline
Travel
75mm
Fork
SR Suntour NVX30 DS / Tapered / QR x 100mm
Drive Unit
Bosch Performance
EU: 25kmh
Battery
PowerTube 625Wh
Display
Bosch Purion 200
Charger
2A Charger
Shifters
Shimano Nexus Inter 5e
Crankset
FSA CK-220 170mm
Chainring
Gates CDX 46T w/Guard
Chain
Gates CDX 130T
Cassette
Gates CDX 32T
Brakes
Shimano BR-MT200 Disc
Rotor
Front: SM-RT10 CL 180mm / Rear: SM-RT10 CL 160mm
Handlebar
Syncros UC3.0 680mm / Rise 12mm / Backsweep 15°
H'stem
Syncros UC 3.0 adjustable
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Seat
Syncros Capilano
Headset
GW semi integrated
Hub (Front)
Shimano HBQC400BAL / 100 QR
Hub (Rear)
Shimano Nexus Inter 5e
Spokes
Black Spokes
Rims
Syncros X18 Disc
Front Tire
Schwalbe Energizer Plus Tour 700x55c
Rear Tire
Schwalbe Energizer Plus Tour 700x55c
Lights
Front Lezyne Hecto E65
Rear Superbright
Rack
Racktime carrier SnapIt 2.0 25KG
Pedals
Marwi SP-828
Extras
Abus 4750SL ART approved / Battery Lock
Approx weight in KG
30.2
Approx weight in LBS
66.58
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
